Overview

The QuickTeller Bills Payment API enables merchants to integrate bill payment functionality into their applications. This service allows you to process payments for various services including:

Cable TV subscriptions (DSTV, GOtv, Startimes)
Utility bills (Electricity, Water)
Insurance payments
Tax payments
Airline tickets
Donations
Internet services
And many more...

How It Works

When a user pays for a service on your platform:

You identify the category, biller, and payment item to obtain a PaymentCode.
You validate the customer's account identifier (when required by the biller).
You submit the payment details to the Bills Payment API.
Interswitch charges your virtual card for the equivalent amount.
Value is delivered to the customer's service account.
You earn commission on each successful transaction.

Getting Started

Prerequisites

Before integrating, ensure you have:

Terminal ID for authentication
Access credentials (Client ID and Secret)

Terminal ID and Channel Codes

Every TerminalId is composed of the following parts, with no separators:

{ChannelId}{TerminalOwnerCode}{RandomDigits}

ChannelId identifies the channel through which the transaction originates.
TerminalOwnerCode is the terminal owner's assigned code.
RandomDigits is an optional numeric suffix. When this part is used, 0001 is the preferred value.

For example, 5IIP0001 consists of channel ID 5 (Bank API), terminal owner code IIP, and suffix 0001.

Channel ID	Channel
`1`	ATM
`2`	POS
`3`	Web
`4`	MOB
`5`	Bank API
`6`	PCPOS
`7`	Location

Base URLs

Environment	Base URL
QA/Testing	`https://qa.interswitchng.com/quicktellerservice/api/v5`
Production	`https://orion.interswitchng.com/quicktellerservice/api/v5`

Amount Convention

All monetary amounts are in the minor unit of the currency (kobo for NGN).

10000 = ₦100.00

500000 = ₦5,000.00

Multiply Naira by 100 to get kobo.

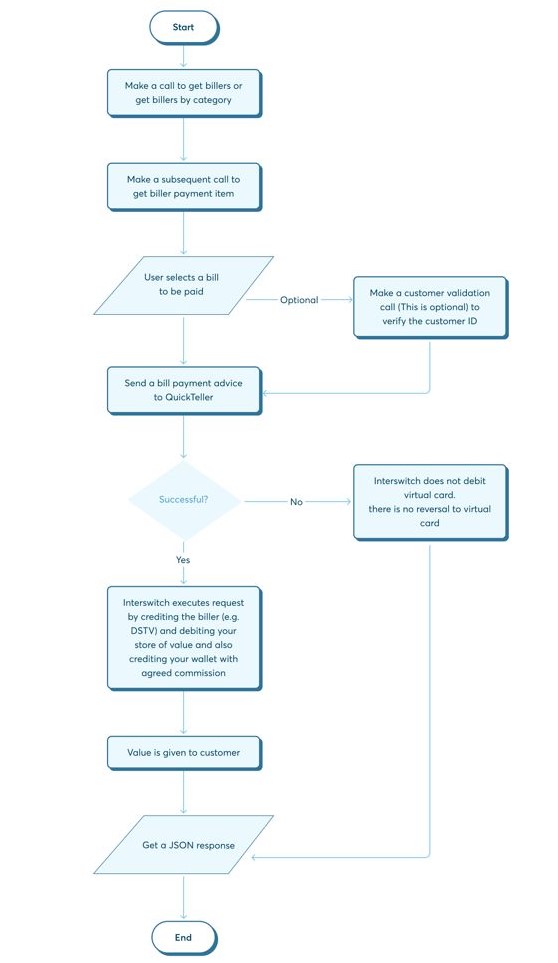

Architecture Flow

Authentication

All API requests require a Bearer token. Generate your access token using the OAuth 2.0 client credentials flow.

Token Generation

Endpoint: POST https://passport-sandbox.interswitchng.com/passport/oauth/token

Request:

curl --location 'https://passport-sandbox.interswitchng.com/passport/oauth/token' \
--header 'Authorization: Basic <BASE64_ENCODED_CREDENTIALS>' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'scope=profile' \
--data-urlencode 'grant_type=client_credentials'

Headers:

Header	Value	Description
`Authorization`	`Basic <credentials>`	Base64 encoded `client_id:client_secret`
`Content-Type`	`application/x-www-form-urlencoded`	Request format

Response:

{
    "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9...",
    "token_type": "bearer",
    "expires_in": 43199,
    "scope": "profile",
    "merchant_code": "MX52988",
    "merchant-wallet-actions": ["settle", "transact", "reverse"],
    "terminalId": "3PBL0001",
    "env": "TEST",
    "client_name": "QTSVA UAT",
    "email": "[email protected]"
}

Important: Tokens expire after approximately 12 hours (expires_in value in seconds). Implement token refresh logic in your application.

Integration Flow

The complete bill payment flow involves these steps:

Step 1: Get Categories
    │
    ▼
Step 2: Fetch Billers by Category
    │
    ▼
Step 3: Fetch Payment Items (required — source of PaymentCode)
    │
    ▼
Step 4: Validate Customer (when required by the biller)
    │
    ▼
Step 5: Make Payment
    │
    ▼
Step 6: Query Transaction Status (recommended)

Step-by-Step Implementation

Step 1: Get Categories

Purpose: Retrieve the complete list of service categories to understand what types of payments are available and identify which category contains your target service.

Description: This initial step provides a high-level overview of all supported payment categories (e.g., Utility Bills, Cable TV, Insurance, Donations). Each category includes a unique ID, name, and description to help you organize and present payment options in your application.

Endpoint: GET /services/categories

Request:

curl 'https://qa.interswitchng.com/quicktellerservice/api/v5/services/categories' \
-H 'Authorization: Bearer <TOKEN>' \
-H 'terminalId: <YOUR_TERMINAL_ID>' \
-H 'Content-Type: application/json' \
-X GET

Response:

{
    "BillerCategories": [
        {
            "Id": 1,
            "Name": "Utility Bills",
            "Description": "Pay your utility bills here",
            "Billers": []
        },
        {
            "Id": 2,
            "Name": "Cable TV Bills",
            "Description": "Pay for your cable TV subscriptions here",
            "Billers": []
        },
        {
            "Id": 3,
            "Name": "State Payments",
            "Description": "Pay state taxes",
            "Billers": []
        },
        {
            "Id": 7,
            "Name": "Donations",
            "Description": "Donate to a worthy cause",
            "Billers": []
        },
        {
            "Id": 8,
            "Name": "Phone Bills",
            "Description": "Pay all post paid phone bills",
            "Billers": []
        },
        {
            "Id": 9,
            "Name": "Subscriptions",
            "Description": "Pay for your other subscriptions (like ISP) here",
            "Billers": []
        },
        {
            "Id": 12,
            "Name": "Tax Payments",
            "Description": "Tax Payments",
            "Billers": []
        },
        {
            "Id": 13,
            "Name": "Insurance/Smart",
            "Description": "Insurance Payments",
            "Billers": []
        },
        {
            "Id": 15,
            "Name": "Airlines",
            "Description": "Airlines",
            "Billers": []
        },
        {
            "Id": 19,
            "Name": "Microfinance",
            "Description": "Microfinance",
            "Billers": []
        }
    ],
    "ResponseCode": "90000",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

Key Points:

The Id field is used to fetch billers in Step 2.
The Billers array is empty in this endpoint; use it for display purposes only.
Categories may vary based on your terminal configuration.

Step 2: Fetch Billers by Category

Purpose: Retrieve all available billers (service providers) within a specific category along with their configuration details. Alternatively, you can get all billers available to the terminal.

Description: This step returns detailed information about each biller in the selected category, including customer input field labels, currency information, and amount handling rules. Use this data to dynamically build your payment forms.

Endpoints:

GET /services?categoryId={categoryId}
GET /services

Parameters:

Parameter	Type	Required	Description
`categoryId`	Integer	Yes	The category ID from Step 1

Request:

Get billers by category:

curl 'https://qa.interswitchng.com/quicktellerservice/api/v5/services?categoryId=1' \
-H "Authorization: Bearer <TOKEN>" \
-H "Content-Type: application/json" \
-H "TerminalID: <YOUR_TERMINAL_ID>" \
-X GET

Get all billers:

curl 'https://qa.interswitchng.com/quicktellerservice/api/v5/services' \
-H "Authorization: Bearer <TOKEN>" \
-H "Content-Type: application/json" \
-H "TerminalID: <YOUR_TERMINAL_ID>" \
-X GET

Response:

{
    "BillerList": {
        "Count": 49,
        "Category": [
            {
                "Id": 1,
                "Name": "Utility Bills",
                "Description": "Pay your utility bills here",
                "Billers": [
                    {
                        "Type": "PHV",
                        "Id": 17589,
                        "PayDirectProductId": 4588,
                        "PayDirectInstitutionId": 0,
                        "Name": "Abuja Disco BuyPower",
                        "ShortName": "AbjBuyPwr",
                        "Narration": "Abuja Disco Buy Power Prepaid",
                        "CustomerField1": "CustomerRef",
                        "CustomerField2": "CustomerRef",
                        "LogoUrl": "q.gif",
                        "Surcharge": "0",
                        "CurrencyCode": "566",
                        "CurrencySymbol": "NGN",
                        "QuickTellerSiteUrlName": "abjbuypwr",
                        "NetworkId": "buypower-uat",
                        "ProductCode": "051760201",
                        "PageFlowInfo": {
                            "Elements": [],
                            "FinishButtonName": "Finish",
                            "StartPage": "DoPayment.aspx",
                            "UsesPaymentItems": true,
                            "PerformInquiry": true,
                            "AllowRetry": true
                        },
                        "CategoryId": 1,
                        "CategoryName": "Utility Bills",
                        "AmountType": 2
                    },
                    {
                        "Id": 16921,
                        "Name": "ABUJA ELECTRIC PREPAID",
                        "ShortName": "AEPD",
                        "Narration": "ABUJA ELECTRIC PREPAID",
                        "CustomerField1": "ACCOUNT NO",
                        "LogoUrl": "q.gif",
                        "Surcharge": "0",
                        "CurrencyCode": "566",
                        "CurrencySymbol": "NGN",
                        "QuickTellerSiteUrlName": "aedc",
                        "NetworkId": "6280510421",
                        "ProductCode": "6280515222",
                        "CategoryId": 1,
                        "CategoryName": "Utility Bills",
                        "AmountType": 0
                    }
                ]
            }
        ]
    },
    "ResponseCode": "90000",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

Implementation Notes:

Extract Biller ID: The Id field is critical for subsequent API calls.
Customer Fields: Use CustomerField1 (and CustomerField2 if present) to label your input forms.
Amount Handling: Check AmountType to determine how to handle payment amounts (see Amount Types).
Logo Display: Use MediumImageId, SmallImageId, or LargeImageId for biller logos. LogoUrl is legacy and should not be relied on.
Currency: CurrencyCode 566 = NGN, 840 = USD, 404 = KES.
Payment Codes: ProductCode, NetworkId, and PayDirectProductId are internal fields. Do not use them as PaymentCode. The correct PaymentCode is obtained from payment items in Step 3.

Step 3: Fetch Payment Items

Purpose: Retrieve the payment items (packages or products) offered by a biller. This step is required because every bill payment must use a valid PaymentCode, and payment codes are obtained here.

Description: Payment items represent the actual products or services a customer can pay for. Each item exposes a unique PaymentCode that must be used in the validation and payment requests. Without a payment item's PaymentCode, a bill payment cannot be processed.

Endpoint: GET /services/options?serviceid={billerId}

Parameters:

Parameter	Type	Required	Description
`serviceid`	Integer	Yes	The biller ID from Step 2

Request:

curl 'https://qa.interswitchng.com/quicktellerservice/api/v5/services/options?serviceid=17589' \
-H "Authorization: Bearer <TOKEN>" \
-H "Content-Type: application/json" \
-H "TerminalID: <YOUR_TERMINAL_ID>" \
-X GET

Response:

{
    "PaymentItems": [
        {
            "Id": "01",
            "Name": "Abuja Disco Buypower Prepaid",
            "BillerName": "Abuja Disco Buy Power Prepaid",
            "ConsumerIdField": "CustomerRef",
            "Code": "01",
            "BillerType": "PHV",
            "ItemFee": "0",
            "Amount": "0",
            "BillerId": "17589",
            "BillerCategoryId": "1",
            "CurrencyCode": "566",
            "CurrencySymbol": "NGN",
            "ItemCurrencyCode": "566",
            "ItemCurrencySymbol": "NGN",
            "Children": [],
            "IsAmountFixed": true,
            "SortOrder": 0,
            "PictureId": 0,
            "PaymentCode": "051758901",
            "AmountType": 2,
            "PaydirectItemCode": "051760201"
        }
    ],
    "ResponseCode": "90000",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

Key Fields:

Field	Description
`PaymentCode`	Required for customer validation and payment. This is the value you send in Step 4 and Step 5.
`Amount`	The fixed or suggested amount for this item
`IsAmountFixed`	If true, the amount cannot be changed
`ItemFee`	Additional fee for this specific item

Step 4: Validate Customer

Purpose: Verify that the customer ID (e.g., meter number, smart card number, policy number) is valid and retrieve the customer's details including the exact amount due.

Description: This step is crucial for billers that require it. It confirms the customer exists with the biller and returns important information such as the customer's name and the exact amount to be paid (especially for postpaid bills). Validation should always be performed when the biller's configuration requires it.

Endpoint: POST /Transactions/validatecustomers

Request:

curl 'https://qa.interswitchng.com/quicktellerservice/api/v5/Transactions/validatecustomers' \
-H "Authorization: Bearer <TOKEN>" \
-H "Content-Type: application/json" \
-H "TerminalID: <YOUR_TERMINAL_ID>" \
-d '{
    "customers": [
        {
            "PaymentCode": "051758901",
            "CustomerId": "12345678910",
            "WithDetails": true
        }
    ],
    "TerminalId": "3PBL0001"
}' \
-X POST

Request Body Fields:

Field	Type	Required	Description
`customers`	Array	Yes	Array of customer objects to validate
`customers[].PaymentCode`	String	Yes	Payment code from Step 3
`customers[].CustomerId`	String	Yes	The customer's ID (from user input)
`customers[].Amount`	String	Conditional	Amount in minor currency units. Required when the biller applies a customer-borne fee
`customers[].WithDetails`	bool	No	Add this if you want more customer details
`TerminalId`	String	Yes	Your terminal ID

Response:

{
    "Customers": [
        {
            "TerminalId": "3PBL0001",
            "BillerId": 0,
            "PaymentCode": "051758901",
            "CustomerId": "12345678910",
            "ResponseCode": "90000",
            "FullName": "Chukwuma Ciroma",
            "Amount": 35000,
            "AmountType": 2,
            "AmountTypeDescription": "Biller requires minimum amount: NGN 350.00.",
            "Surcharge": 0
        }
    ],
    "ResponseCode": "90000",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

With details:

{
    "Customers": [
        {
            "TerminalId": "3PBL0001",
            "BillerId": 0,
            "PaymentCode": "051758901",
            "CustomerId": "12345678910",
            "WithDetails": "true",
            "ResponseCode": "90000",
            "FullName": "Chukwuma Ciroma",
            "Address": "012 Fake Cresent, Fake City, Fake State",
            "DateOfBirth": "08-06-2026",
            "Lastname": "Chukwuma",
            "Othernames": "Ciroma",
            "Title": "",
            "SecConsumerId": "",
            "PriConsumerId": "12345678910",
            "Amount": 35000,
            "AmountType": 2,
            "AmountTypeDescription": "Biller requires minimum amount: NGN 350.00.",
            "Surcharge": 0,
            "AdditionalInfoParameters": {
                "MinAmount": "0",
                "AmountDue": "0",
                "ConvenientFee": "0.00",
                "CustomerFee": "0.00",
                "Message": "Surcharge is total sum of Convenient Fee + Customer Borne Fee"
            },
            "AdditionalInfo": "Tariff:0;Outstanding:0.0;DebtRepayment:0.0;MinVendAmount:350.0;MaxVendAmount:1.0E7"
        }
    ],
    "ResponseCode": "90000",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

Response Fields:

Field	Description
`ResponseCode`	`90000` = Valid customer, others = Invalid
`FullName`	Customer's registered name (if available)
`Amount`	Exact amount due (in kobo) for postpaid bills
`AmountType`	Confirms how to handle the amount
`Surcharge`	Additional fee to be added

Important:

If ResponseCode is not 90000, do not proceed with payment.
Use the returned Amount for postpaid bills (AmountType 3).
Always display the FullName to the user for confirmation.

Billers with Customer-Borne Fees

For billers that apply a customer-borne fee, include Amount in the validation request. The API uses the amount to calculate and return the applicable fees.

Request:

{
    "customers": [
        {
            "PaymentCode": "053434101",
            "CustomerId": "08168284169",
            "Amount": "10000",
            "WithDetails": true
        }
    ],
    "TerminalId": "5IIP0001"
}

Response:

{
    "Customers": [
        {
            "TerminalId": "5IIP0001",
            "BillerId": 0,
            "PaymentCode": "053434101",
            "CustomerId": "08168284169",
            "WithDetails": "true",
            "ResponseCode": "90000",
            "FullName": "Azeezat Animashaun Adebola",
            "Address": "",
            "DateOfBirth": "04-09-2026",
            "Email": "",
            "Lastname": "Azeezat",
            "Othernames": "Animashaun Adebola",
            "Title": "",
            "PriConsumerId": "08168284169",
            "Amount": 0,
            "AmountType": 0,
            "AmountTypeDescription": "AnyAmount",
            "Surcharge": 20000,
            "AdditionalInfoParameters": {
                "MinAmount": "0",
                "AmountDue": "0",
                "ConvenientFee": "100.00",
                "CustomerFee": "100.00",
                "Message": "Surcharge is total sum of Convenient Fee + Customer Borne Fee"
            },
            "AdditionalInfo": "Fee:100.00"
        }
    ],
    "ResponseCode": "90000",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

In this example, AdditionalInfo contains Fee:100.00, which represents a customer-borne fee of 100.00 in the transaction currency. The integrating terminal is expected to collect this fee from the end customer because it will be debited from the terminal's financial instrument or otherwise accounted for during transaction processing.

AdditionalInfoParameters.CustomerFee provides the customer-borne fee in a structured field, while Surcharge represents the total of the convenience fee and customer-borne fee.

Step 5: Make Payment

Purpose: Process the actual payment transaction after customer validation (when required).

Description: This is the final step where you submit the payment details to complete the transaction. Upon success, the customer's account is credited with the service (e.g., electricity token, DSTV subscription), and your virtual card is debited for the transaction amount.

Endpoint: POST /Transactions

Request:

curl 'https://qa.interswitchng.com/quicktellerservice/api/v5/transactions' \
-H "Authorization: Bearer <TOKEN>" \
-H "Content-Type: application/json" \
-H "TerminalID: <YOUR_TERMINAL_ID>" \
-d '{
    "paymentCode": "051758901",
    "customerId": "12345678910",
    "customerMobile": "2348124888436",
    "customerEmail": "[email protected]",
    "amount": "500000",
    "requestReference": "122200898163"
}' \
-X POST

Request Body Fields:

Field	Type	Required	Description
`paymentCode`	String	Yes	Payment code from Step 3
`customerId`	String	Yes	Validated customer ID
`customerMobile`	String	Yes	Customer's mobile number
`customerEmail`	String	No	Customer's email address
`customerName`	String	No	Customer's name
`amount`	String	Yes	Amount in kobo (e.g., "500000" for ₦5,000)
`additionalInfo`	String	No	Semicolon-delimited additional request information in `Key:Value` format
`requestReference`	String	Yes	Unique reference for this transaction (max 20 chars)

Passing Additional Information

Use AdditionalInfo to send optional transaction metadata as semicolon-delimited Key:Value pairs. For example, a bank teller channel can pass teller and branch details:

{
    "CustomerId": "12345678910",
    "PaymentCode": "52005",
    "Amount": "250000",
    "CustomerEmail": "[email protected]",
    "CustomerMobile": "07032040511",
    "CustomerName": "John Doe",
    "AdditionalInfo": "Teller Name:James Etim;Branch Name:VI;Branch Code:044;Teller ID:0494243",
    "RequestReference": "{{RequestReference2}}"
}

Separate entries with semicolons (;) and separate each key from its value with a colon (:). The keys and values should contain the information required for your integration or reporting flow.

Response — Pin-based bill payment:

{
    "TransactionRef": "PBL|Web|3PBL0001|AbjBuyPw|080626111212|7WJYMPTTJD",
    "RechargePIN": "03659524516800036346",
    "PhcnTokenDetails": "Pin:03659524516800036346;Receipt Number:284845;Units:55.9;Invoice Number:105709159;Meter Number:1001279455;Tax:N279.07;Total:N4000.0;Token:03659524516800036346;Arrears Balance:N0.0;Address:012 Fake Cresent, Fake City, Fake State;Tariff:0;Outstanding:0.0;DebtRepayment:0.0;MinVendAmount:350.0;MaxVendAmount:1.0E7",
    "ApprovedAmount": "3154364",
    "MiscData": "Pin:03659524516800036346;Receipt Number:284845;Units:55.9;Invoice Number:105709159;Meter Number:1001279455;Tax:N279.07;Total:N4000.0;Token:03659524516800036346;Arrears Balance:N0.0;Address:012 Fake Cresent, Fake City, Fake State;Tariff:0;Outstanding:0.0;DebtRepayment:0.0;MinVendAmount:350.0;MaxVendAmount:1.0E7",
    "AdditionalInfo": {
        "Pin": "03659524516800036346",
        "Receipt Number": "284845",
        "Units": "55.9",
        "Invoice Number": "105709159",
        "Meter Number": "1001279455",
        "Tax": "N279.07",
        "Total": "N4000.0",
        "Token": "03659524516800036346",
        "Arrears Balance": "N0.0",
        "Address": "012 Fake Cresent, Fake City, Fake State",
        "Tariff": "0",
        "Outstanding": "0.0",
        "DebtRepayment": "0.0",
        "MinVendAmount": "350.0",
        "MaxVendAmount": "1.0E7"
    },
    "ResponseCode": "90000",
    "ResponseDescription": "Success",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

Response — Non-pin-based bill payment:

{
    "TransactionRef": "PBL|Web|3PBL0001|CGM|080626111324|M4UWNM9HJN",
    "ApprovedAmount": "3154364",
    "AdditionalInfo": {},
    "ResponseCode": "90000",
    "ResponseDescription": "Success",
    "ResponseCodeGrouping": "SUCCESSFUL"
}

Response Fields:

Field	Description
`TransactionRef`	Unique transaction reference (store this!)
`ApprovedAmount`	Amount that was processed
`AdditionalInfo`	Bill-specific info (tokens, units, etc.)
`RechargePIN`	Token or PIN delivered to the customer
`ResponseCode`	`90000` = Success
`ResponseDescription`	Human-readable status

Transaction Flow:

Your app submits payment request.
API validates the request.
Your virtual card is debited.
Biller receives the payment.
Value is delivered to customer.
You receive commission.

Step 6: Query Transaction Status

Purpose: Check the status of a previously submitted transaction.

Description: Use this endpoint to verify transaction status, especially useful for handling timeouts or when you need to confirm a transaction's final state. This is recommended for production implementations.

Endpoint: GET /Transactions?requestRef={requestReference}

Parameters:

Parameter	Type	Required	Description
`requestRef`	String	Yes	The request reference from Step 5

Request:

curl 'https://qa.interswitchng.com/quicktellerservice/api/v5/Transactions?requestRef=122200898163' \
-H "Authorization: Bearer <TOKEN>" \
-H "Content-Type: application/json" \
-H "TerminalID: <YOUR_TERMINAL_ID>" \
-X GET

Response:

{
    "BillPayment": {
        "biller": "MCN",
        "customerId1": "000000001",
        "customerId2": null,
        "paymentTypeName": "Family",
        "paymentTypeCode": "COFAMW4",
        "billerId": "104"
    },
    "amount": "2000",
    "currencyCode": "566",
    "customer": "000000001",
    "customerEmail": "[email protected]",
    "customerMobile": "08065186175",
    "paymentDate": "7/18/2016 8:53:39 AM",
    "requestReference": "119420151169",
    "serviceCode": "COFAMW4",
    "serviceName": "Family",
    "serviceProviderId": "104",
    "status": "Completed",
    "surcharge": "100",
    "transactionRef": "FTH|Web|3FTH0001|MCN|180716085339|00000002",
    "transactionResponseCode": "90000",
    "transactionSet": "BillPayment"
}

Status Values:

Status	Description
`Completed`	Transaction successful
`Pending`	Transaction is processing
`Failed`	Transaction failed
`Reversed`	Transaction was reversed

Field Reference

Category Fields

Field	Type	Description
`Id`	Integer	Unique identifier for the category
`Name`	String	Category name
`Description`	String	Brief description of the category
`Billers`	Array	List of billers (empty in categories endpoint)

Biller Fields

Core Fields (Required)

Field	Type	Description
`Id`	Integer	Unique biller identifier
`Name`	String	Full biller name
`ShortName`	String	Abbreviated biller code
`Narration`	String	Service description
`CustomerField1`	String	Label for primary customer input field
`CustomerField2`	String	Label for secondary input (if required)
`CurrencyCode`	String	ISO currency code (566=NGN, 840=USD, 404=KES)
`CurrencySymbol`	String	Currency symbol (NGN, USD, KES)
`AmountType`	Integer	How amount is determined (0-5)

Media Fields

Field	Description
`SmallImageId`	UUID for small logo (thumbnails)
`MediumImageId`	UUID for medium logo (standard display)
`LargeImageId`	UUID for large logo (detail views)

Internal Fields (Ignore)

These fields are for internal use and should not be used in your implementation:

Type, PayDirectProductId, PayDirectInstitutionId
QuickTellerSiteUrlName, NetworkId, ProductCode
PageFlowInfo, RiskCategoryId, Surcharge
CustomSectionUrl, CustomMessageUrl, LogoUrl

Important: ProductCode is not a PaymentCode. The PaymentCode used in validation and payment requests must be obtained from the payment items endpoint in Step 3.

Payment Item Fields

Field	Type	Description
`Id`	String	Item identifier
`Name`	String	Item name
`BillerName`	String	Associated biller name
`ConsumerIdField`	String	Label for the customer ID field
`PaymentCode`	String	Required value to use in validation and payment requests
`Amount`	String	Fixed or suggested amount in kobo
`IsAmountFixed`	Boolean	If true, the amount cannot be changed
`ItemFee`	String	Additional fee for this specific item
`AmountType`	Integer	How amount is determined for this item

Validation Request Fields

Field	Type	Required	Description
`customers`	Array	Yes	Array of customer objects to validate
`customers[].PaymentCode`	String	Yes	Payment code from Step 3
`customers[].CustomerId`	String	Yes	The customer's ID (from user input)
`customers[].Amount`	String	Conditional	Amount in minor currency units. Required when the biller applies a customer-borne fee
`customers[].WithDetails`	Boolean	No	Request additional customer details
`TerminalId`	String	Yes	Your terminal ID

Payment Request Fields

Field	Type	Required	Description
`paymentCode`	String	Yes	Payment code from Step 3
`customerId`	String	Yes	Customer ID
`customerMobile`	String	Yes	Customer's mobile number
`customerEmail`	String	No	Customer's email address
`customerName`	String	No	Customer's name
`amount`	String	Yes	Amount in kobo (e.g., "500000" for ₦5,000)
`additionalInfo`	String	No	Semicolon-delimited additional request information in `Key:Value` format
`requestReference`	String	Yes	Unique reference for this transaction (max 20 chars)

Query Response Fields

Field	Description
`BillPayment`	Biller and payment type details
`amount`	Transaction amount
`currencyCode`	Transaction currency code
`customer`	Customer ID
`customerEmail`	Customer email
`customerMobile`	Customer mobile number
`paymentDate`	Transaction date
`requestReference`	Request reference
`serviceCode`	Payment code
`serviceName`	Service name
`serviceProviderId`	Biller ID
`status`	Transaction status
`surcharge`	Surcharge applied
`transactionRef`	Unique transaction reference
`transactionResponseCode`	Response code
`transactionSet`	Transaction category

Amount Types

The AmountType field determines how to handle payment amounts:

Value	Name	Description
`0`	Any Amount (None)	No specific amount type is defined or required
`1`	Minimum Amount	Represents the minimum allowable amount. The value must be greater than or equal to this amount.
`2`	Greater Than Minimum Amount	Represents an amount that must be strictly greater than the minimum. The value must exceed this amount.
`3`	Maximum Amount	Represents the maximum allowable amount. The value must be less than or equal to this amount.
`4`	Less Than Maximum Amount	Represents an amount that must be strictly less than the maximum. The value must be below this amount.
`5`	Exact Amount	Represents an exact amount that must be matched precisely.

Response Codes

For a complete list of response codes, their meanings, and resolutions, see the Response Codes documentation.

Common response codes for bill payments include:

Code	Description
`90000`	Transaction/Request successful
`90001`	Invalid customer ID
`90002`	Customer not found
`90003`	Invalid amount
`90004`	Insufficient funds
`90005`	Duplicate transaction
`90006`	Service unavailable
`90007`	Invalid payment code
`90008`	Validation failed

Test Data

Use the following test credentials during development:

Test Credentials

Field	Value
Terminal ID	`3PBL0001`
Client ID	IKIAF9CC50BE5C702A3A1859FE8175439EC9910AB7CC
Client Secret	Tk52bmVRZGNNcXF1RzVMUkRiUk44VWh0Rg
Request Reference Prefix	`1453`
Initiating Entity Code	`PBL`

Test Virtual Card

Field	Value
Card Number	`6280511000000095`
Expiry	`12/2026`
CVV	`000`
PIN	`0000`

Test Billers

Service	Payment Code	Customer ID	Category
DAARSAT Communications	`11310`	`01890003338`	Cable TV Bills (2)
Abuja Disco Buypower Prepaid (PIN)	`051758901`	`12345678910`	Utility Bills (1)
Church Of God Mission International	`52005`	`2348169901895`	Donations (7)

Test Scenarios

Scenario 1: Successful DSTV Payment

Payment Code: 48001
Customer ID: 0000000001
Amount: 500000 (₦5,000)
Expected: Success (90000)

Scenario 2: Invalid Customer

Payment Code: 48001
Customer ID: 9999999999
Expected: Customer not found error

Scenario 3: Electricity Token Purchase

Payment Code: 051758901
Customer ID: 12345678910
Amount: 100000 (₦1,000)
Expected: Success with token in RechargePIN field and AdditionalInfo

Examples

Example 1: Complete DSTV Subscription Flow

// Step 1: Get categories (fetch once and cache)
const categories = await fetchCategories();
const cableCategory = categories.find(c => c.Name === "Cable TV Bills");

// Step 2: Get DSTV biller
const billers = await fetchBillersByCategory(cableCategory.Id);
const dstv = billers.find(b => b.Name === "Multichoice Limited");

// Step 3: Get payment items (bouquet options) — REQUIRED for PaymentCode
const items = await fetchPaymentItems(dstv.Id);
const compactPlus = items.find(i => i.Name === "Compact Plus");

// Step 4: Validate customer
const validation = await validateCustomer({
    paymentCode: compactPlus.PaymentCode,
    customerId: "0000000001"
});

if (validation.ResponseCode !== "90000") {
    throw new Error("Invalid customer");
}

// Step 5: Make payment
const payment = await makePayment({
    paymentCode: compactPlus.PaymentCode,
    customerId: "0000000001",
    customerMobile: "2348012345678",
    customerEmail: "[email protected]",
    amount: compactPlus.Amount,
    requestReference: generateReference() // e.g., "14531678901234"
});

console.log("Transaction Ref:", payment.TransactionRef);
console.log("Status:", payment.ResponseDescription);

Example 2: Electricity Token Purchase

// Steps 1-3: Get AEDC biller and payment item (as shown above)

// Step 4: Validate meter number
const validation = await validateCustomer({
    paymentCode: "051758901",
    customerId: "12345678910"
});

// Step 5: Purchase token
const payment = await makePayment({
    paymentCode: "051758901",
    customerId: "12345678910",
    customerMobile: "2348123456789",
    amount: "100000", // ₦1,000
    requestReference: "14539876543210"
});

// Display token to customer
console.log("Token:", payment.RechargePIN);
console.log("Units:", payment.AdditionalInfo.Units);

Best Practices

Always fetch payment items: Every bill payment requires a PaymentCode obtained from the payment items endpoint. Do not use ProductCode or NetworkId as payment codes.
Validate when required: Perform customer validation for billers that require it before processing payment.
Unique References: Generate a unique requestReference for each transaction.
Handle Timeouts: If payment times out, use Step 6 to check status before retrying.
Store References: Save TransactionRef and requestReference for reconciliation.
Display tokens (RechargePIN): For electricity and similar services, display the token clearly.
Error Handling: Show user-friendly error messages based on response codes.
Idempotency: Implement retry logic with the same reference for failed requests only after confirming the transaction status.
Security: Never expose your client credentials in frontend code.

API Summary

Endpoint	Method	Description
`/services/categories`	GET	Get all categories
`/services?categoryId={id}`	GET	Get billers in category
`/services/options?serviceid={id}`	GET	Get payment items
`/Transactions/validatecustomers`	POST	Validate customer ID
`/Transactions`	POST	Make payment
`/Transactions?requestRef={ref}`	GET	Query transaction status

Support

For technical support or integration assistance:

Email: [email protected]
Documentation: https://docs.interswitchgroup.com

Document Version: 2.0
Last Updated: 2026-09-29
API Version: v5

Table of Contents

Overview

How It Works

Getting Started

Prerequisites

Terminal ID and Channel Codes

Base URLs

Amount Convention

Architecture Flow

Authentication

Token Generation

Integration Flow

Step-by-Step Implementation

Step 1: Get Categories

Step 2: Fetch Billers by Category

Step 3: Fetch Payment Items

Step 4: Validate Customer

Billers with Customer-Borne Fees

Step 5: Make Payment

Passing Additional Information

Step 6: Query Transaction Status

Field Reference

Category Fields

Biller Fields

Core Fields (Required)

Media Fields

Internal Fields (Ignore)

Payment Item Fields

Validation Request Fields

Payment Request Fields

Query Response Fields

Amount Types

Response Codes

Test Data

Test Credentials

Test Virtual Card

Test Billers

Test Scenarios

Examples

Example 1: Complete DSTV Subscription Flow

Example 2: Electricity Token Purchase

Best Practices

API Summary

Support
